Product Video

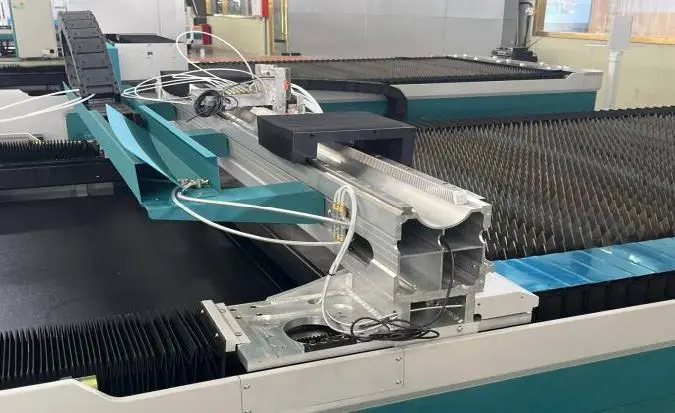

Aviation aluminum gantry
• Aerospace grade aluminum light quality. • High speed, good dynamic response, fast acceleration. • Beam as a whole by the finite element. analysis , optimization for high rigidity. • Lightweight design, durable.

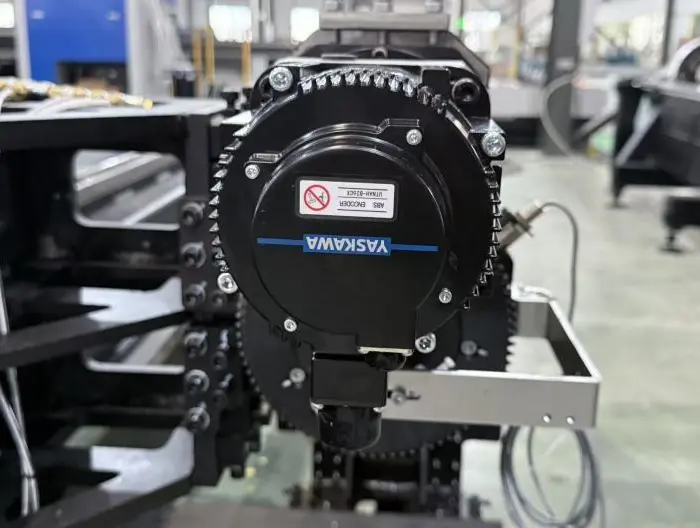

Yaskawa servo motor
• The highest amplifier responsiveness, greatly shorter the setting time. • High efficiency vibration suppression function, greatly improves the follow-up performance, reduces vibration during driving, the vibration of the front part of the machine when stopped.

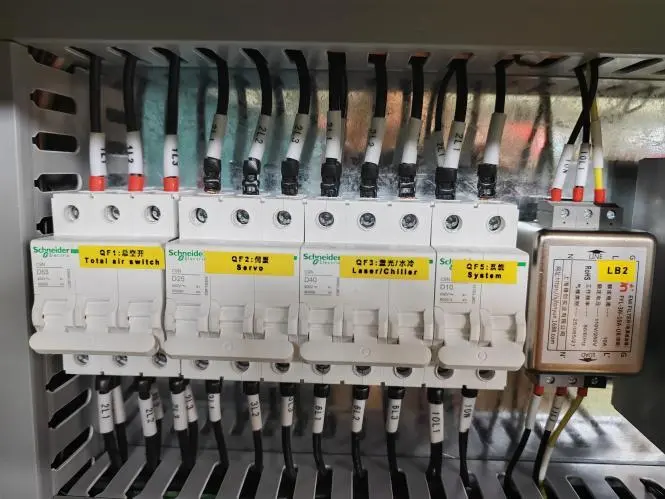

Schneider electric element
• Electrical components are famous brands, which is popular in market. • Stable working ability.
Specification Tables
Machine frame
| MACHINE MODEL | QUANTITY |
|---|---|
| LX4020FC-6KW | 1 |
| Machine frame | * New design of our company * CE standard Heavy duty metal welded machine frame * Cast Aluminum gantry |
| Controller | * Controller Bochu Fscut * CypCut-E software * Industrial CPU+cantilever +DSP |
| Driver system | Yaskawa servo motor |
| Cutting Thickness | ≤25mm Carbon steel, ≤16mm Stainless steel |
| Control System | FSCUT |
| head | Boci or Raytools |

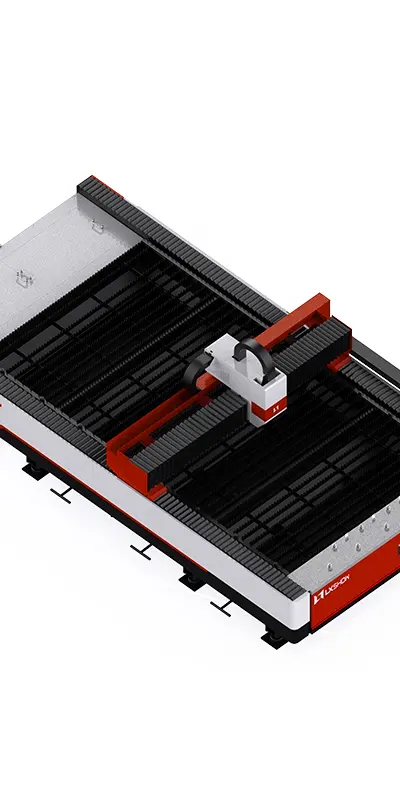

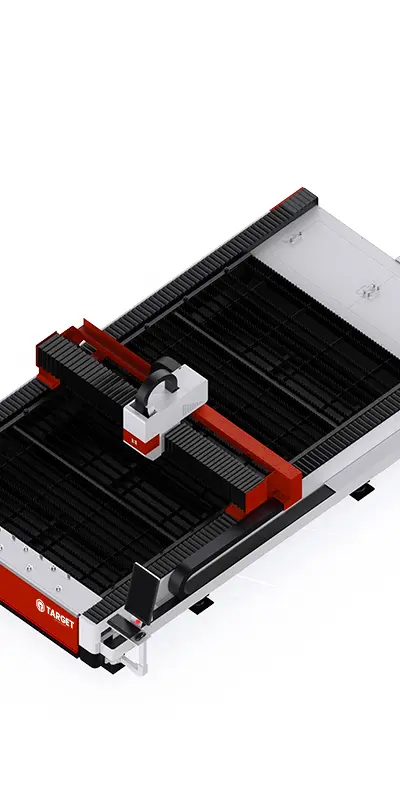

Product Gallery
Samples
