Aviation aluminum gantry
• Aerospace grade aluminum light quality. • High speed, good dynamic response, fast acceleration. • Beam as a whole by the finite element. analysis , optimization for high rigidity. • Lightweight design, durable.
Yaskawa servo motor
• The highest amplifier responsiveness, greatly shorter the setting time. • High efficiency vibration suppression function, greatly improves the follow-up performance, reduces vibration during driving, the vibration of the front part of the machine when stopped.
Schneider electric element
• Electrical components are famous brands, which is popular in market. • Stable working ability.
جداول المواصفات
Machine frame
| MACHINE MODEL | QUANTITY |
|---|---|

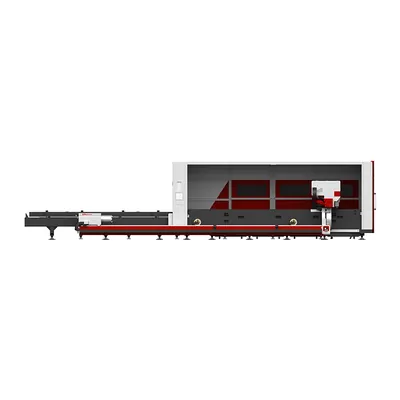

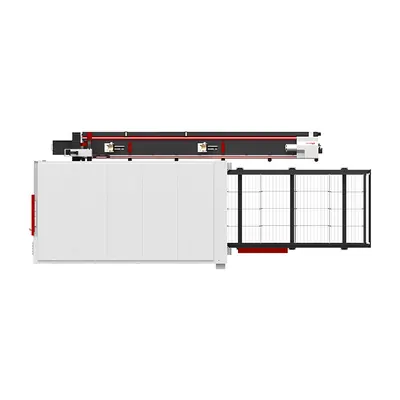

| LX6020HCOT-6KW | 1 |
| Machine frame | * New design of our company * CE standard Heavy duty steel tube welded machine frame * Cast Aluminum gantry * Exchange Working Table+Whole cover+6m length Rotary |
| Controller | * Bochu Controller * Cypcut+tubepro software * Industrial CPU+cantilever #DSP * Independent control box |
| Driver system | Yaskawa servo motor |
| Cutting Thickness | ≤25mm Carbon steel, ≤16mm Stainless steel |
| Control System | FSCUT |
| head | Boci or Raytools |
معرض صور المنتج

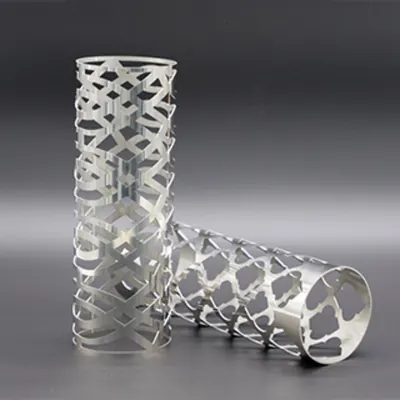

عينات
